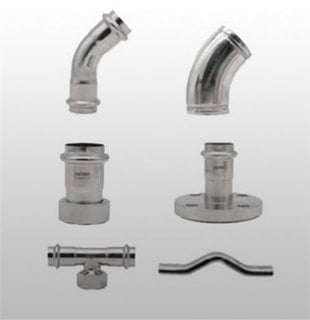

Paslanmazlar Paslanmaz Çelik Pres Bağlantı Borulama Sistemi

Açıklama
PASLANMAZ BORULAR
  Kodu DN Ölçü(mm) Kalınlık(mm)
P1500 00 DN15 16,00 0,8
P2000 00 DN20 20,00 1,0
P2500 00 DN25 25,40 1,0
P3200 00 DN32 32,00 1,2
P4000 00 DN40 40,00 1,2
P5000 00 DN50 50,80 1,2
P6000 00 DN60 63,50 1,5
P6500 00 DN65 76,10 1,5
P8000 00 DN80 89,00 2,0
P1B00 00 DN100 101,60 2,0
P1E00 00 DN125 133,00 2,5
P1W00 00 DN150 159,00 2,5
P2B00 00 DN200 219,00 3,0
P2W00 00 DN250 273,00 4,0
P3B00 00 DN300 325,00 4,0
DÜZ NİPEL KONNEKTOR
  Kodu DN Ölçü(mm)
S1500 00 DN15 16,00
S2000 00 DN20 20,00
S2500 00 DN25 25,40
S3200 00 DN32 32,00
S4000 00 DN40 40,00
S5000 00 DN50 50,80
S6000 00 DN60 63,50
S6500 00 DN65 76,10
S8000 00 DN80 89,00
S1B00 00 DN100 101,60



REDÜKSYON NİPEL KONNEKTOR
  Kodu DN Ölçü(mm)
R2015 00 DN20× 15 20. 00× 16.00
R2515 00 DN25× 15 25.40× 16.00
R2520 00 DN25× 20 25.40× 20.00
R3215 00 DN32× 15 32. 00× 16.00
R3220 00 DN32× 20 32. 00× 20.00
R3225 00 DN32× 25 32. 00× 25.40
R4015 00 DN40× 15 40. 00× 16.00
R4020 00 DN40× 20 40. 00× 20.00
R4025 00 DN40× 25 40. 00× 25.40
R4032 00 DN40× 32 40. 00× 32.00
R5015 00 DN50× 15 50. 80× 16.00
R5020 00 DN50× 20 50. 80× 20.00
R5025 00 DN50× 25 50. 80× 25.40
R5032 00 DN50× 32 50. 80× 32.00
R5040 00 DN50× 40 50. 80× 40.00
R6032 00 DN60× 32 63. 50× 32.00
R6040 00 DN60× 40 63. 50× 40.00
R6050 00 DN60× 50 63. 50× 50.80
R6532 00 DN65× 32 76. 10× 32.00
R6540 00 DN65× 40 76. 10× 40.00
R6550 00 DN65× 50 76. 10× 50.80
R6560 00 DN65× 60 76. 10× 63.50
R8032 00 DN80× 32 88. 90× 32.00
R8040 00 DN80× 40 88. 90× 40.00
R8050 00 DN80× 50 88. 90× 50.80
R8060 00 DN80× 60 88. 90× 63.50
R8065 00 DN80× 65 88. 90× 76. 10
R1B32 00 DN100× 32 101.60× 32. 00
R1B40 00 DN100× 40 101.60× 40. 00
R1B50 00 DN100× 50 101.60× 50. 80
R1B60 00 DN100× 60 101.60× 63. 50
R1B65 00 DN100× 65 101.60× 76. 10
R1B80 00 DN100× 80 101.60× 88. 90



AYARLANABİLİR KONNEKTOR
  Kodu DN Ölçü(mm)
S1500 0K DN15 16,00
S2000 0K DN20 20,00
S2500 0K DN25 25,40
S3200 0K DN32 32,00
S4000 0K DN40 40,00
S5000 0K DN50 50,80
S6000 0K DN60 63,50
S6500 0K DN65 76,10
S8000 0K DN80 89,00
S1B00 0K DN100 101,60



SONLANDIRMA TAPASI
  Kodu DN Ölçü(mm)
C1500 00 DN15 16,00
C2000 00 DN20 20,00
C2500 00 DN25 25,40
C3200 00 DN32 32,00
C4000 00 DN40 40,00
C5000 00 DN50 50,80
C6000 00 DN60 63,50
C6500 00 DN65 76,10
C8000 00 DN80 89,00
C1B00 00 DN100 101,60



A TİPİ 90° DİRSEK
  Kodu DN Ölçü(mm)
E1500 00 DN15 16,00
E2000 00 DN20 20,00
E2500 00 DN25 25,40
E3200 00 DN32 32,00
E4000 00 DN40 40,00
E5000 00 DN50 50,80
E6000 00 DN60 63,50
E6500 00 DN65 76,10
E8000 00 DN80 89,00
E1B00 00 DN100 101,60



B TİPİ 90° DİRSEK
  Kodu DN Ölçü(mm)
E15000B DN15 16,00
E20000B DN20 20,00
E25000B DN25 25,40
E32000B DN32 32,00
E40000B DN40 40,00
E50000B DN50 50,80
E60000B DN60 63,50
E65000B DN65 76,10
E80000B DN80 89,00
E1B000B DN100 101,60



A TİPİ 45°  DİRSEK
  Kodu DN Ölçü(mm)
E150045 DN15 16,00
E200045 DN20 20,00
E250045 DN25 25,40
E320045 DN32 32,00
E400045 DN40 40,00
E500045 DN50 50,80
E600045 DN60 63,50
E650045 DN65 76,10
E800045 DN80 89,00
E1B0045 DN100 101,60



B TİPİ 45°  DİRSEK
  Kodu DN Ölçü(mm)
E15004B DN15 16,00
E20004B DN20 20,00
E25004B DN25 25,40
E32004B DN32 32,00
E40004B DN40 40,00
E50004B DN50 50,80
E60004B DN60 63,50
E65004B DN65 76,10
E80004B DN80 89,00
E1B004B DN100 101,60



REDÜKSYON 90° DİRSEK
  Kodu DN Ölçü(mm)
E2015 0R DN20× 15 20. 00× 16. 00
E2515 0R DN25× 15 25.40× 16. 00
E2520 0R DN25× 20 25.40× 20. 00
E3215 0R DN32× 15 32. 00× 16. 00
E3220 0R DN32× 20 32. 00× 20. 00
E3225 0R DN32× 25 32. 00× 25. 40



REDÜKSYON TEE
  Kodu DN Ölçü(mm)
T2015 0R DN20× 15 20. 00× 16. 00
T2515 0R DN25× 15 25. 40× 16. 00
T2520 0R DN25× 20 25. 40× 20. 00
T3215 0R DN32× 15 32. 00× 16. 00
T3220 0R DN32× 20 32. 00× 20. 00
T3225 0R DN32× 25 32. 00× 25.40
T4015 0R DN40× 15 40. 00× 16. 00
T4020 0R DN40× 20 40. 00× 20. 00
T4025 0R DN40× 25 40. 00× 25.40
T4032 0R DN40× 32 40. 00× 32. 00
T5015 0R DN50× 15 50. 80× 16. 00
T5020 0R DN50× 20 50. 80× 20. 00
T5025 0R DN50× 25 50. 80× 25.40
T5032 0R DN50× 32 50. 80× 32. 00
T5040 0R DN50× 40 50. 80× 40. 00
T6020 0R DN60× 20 63. 50× 20. 00
T6025 0R DN60× 25 63. 50× 25.40
T6032 0R DN60× 32 63. 50× 32. 00
T6040 0R DN60× 40 63. 50× 40. 00
T6050 0R DN60× 50 63. 50× 50. 80
T6520 0R DN65× 20 76. 10× 20. 00
T6525 0R DN65× 25 76. 10× 25.40
T6532 0R DN65× 32 76. 10× 32. 00
T6540 0R DN65× 40 76. 10× 40. 00
T6550 0R DN65× 50 76. 10× 50. 80
T6560 0R DN65× 60 76. 10× 63. 50
T8020 0R DN80× 20 88. 90× 20. 00
T8025 0R DN80× 25 88. 90× 25.4
T8032 0R DN80× 32 88. 90× 32. 00
T8040 0R DN80× 40 88. 90× 40. 00
T8050 0R DN80× 50 88. 90× 50. 80
T8060 0R DN80× 60 88. 90× 63. 50
T8065 0R DN80× 65 88. 90× 76. 10
T1B20 0R DN100× 20 101.60× 20. 00
T1B25 0R DN100× 25 101.60× 25. 40
T1B32 0R DN100× 32 101.60× 32. 00
T1B40 0R DN100× 40 101.60× 40. 00
T1B50 0R DN100× 50 101.60× 50. 80
T1B60 0R DN100× 60 101.60× 63. 50
T1B65 0R DN100× 65 101.60× 76. 10
T1B80 0R DN100× 80 101.60× 88. 90



BORU BAĞLANTI KÖPRÜSÜ
  Kodu DN Ölçü(mm)
Q1500 00 DN15 16,00
Q2000 00 DN20 20,00
Q2500 00 DN25 25,40



TEE
  Kodu DN Ölçü(mm)
T1500 00 DN15 16,00
T2000 00 DN20 20,00
T2500 00 DN25 25,40
T3200 00 DN32 32,00
T4000 00 DN40 40,00
T5000 00 DN50 50,80
T6000 00 DN60 63,50
T6500 00 DN65 76,10
T8000 00 DN80 89,00
T1B00 00 DN100 101,60



KRUVA
  Kodu DN Ölçü(mm)
T1500 CS DN15 16,00
T2000 CS DN20 20,00
T2500 CS DN25 25,40
T3200 CS DN32 32,00
T4000 CS DN40 40,00
T5000 CS DN50 50,80
T6000 CS DN60 63,50
T6500 CS DN65 76,10
T8000 CS DN80 89,00
T1B00 CS DN100 101,60



ERKEK DİŞLİ ADAPTÖR
  Kodu DN Ölçü(mm)
M1515 00 15× 15 16. 00 × R½
M2015 00 20× 15 20. 00 × R½
M2020 00 20× 20 20. 00 × R¾
M2515 00 25× 15 25.40 × R½
M2520 00 25× 20 25.40 × R¾
M2525 00 25× 25 25.40 × R1
M3225 00 32× 25 32. 00 × R1
M3232 00 32× 32 32. 00 × R1¼
M4032 00 40× 32 40. 00 × R1¼
M4040 00 40× 40 40. 00 × R1¼
M5040 00 50× 40 50. 80 × R1¼
M5050 00 50× 50 50. 80 × R2
M6065 00 60× 65 63. 50× R2½
M6565 00 65× 65 76. 10× R2½
M8080 00 80× 80 88. 90× R3
M1B1B 00 100× 100 101. 6× R4



DİŞİ DİŞLİ ADAPTÖR
  Kodu DN Ölçü(mm)
F1515 00 15× 15 16. 00 × R½
F2015 00 20× 15 20. 00 × R½
F2020 00 20× 20 20. 00 × R¾
F2515 00 25× 15 25.40 × R½
F2520 00 25× 20 25.40 × R¾
F2525 00 25× 25 25.40 × R1
F3225 00 32× 25 32. 00 × R1
F3232 00 32× 32 32. 00 × R1¼
F4032 00 40× 32 40. 00 × R1¼
F4040 00 40× 40 40. 00 × R1¼
F5040 00 50× 40 50. 80 × R1¼
F5050 00 50× 50 50. 80 × R2
F6065 00 60× 65 63. 50× R2½
F6565 00 65× 65 76. 10× R2½
F8080 00 80× 80 88. 90× R3
F1B1B 00 100× 100 101. 6× R4



DÖNER SOMUNLU DİŞİ REKOR
  Kodu DN Ölçü(mm)
F1515 0K 15× 15 16. 00 × R½
F1520 0K 15× 20 16. 01× R¾
F2015 0K 20× 15 20. 00 × R½
F2020 0K 20× 20 20. 00 × R¾
F2525 0K 25× 25 25.40 × R1
F3232 0K 32× 32 32. 00 × R1¼
F4040 0K 40× 40 40. 00 × R1¼
F5050 0K 50× 50 50. 80 × R2



FLANŞ BAĞLANTI
  Kodu DN Ölçü(mm)
L2500 00 DN25 25,40
L3200 00 DN32 32,00
L4000 00 DN40 40,00
L5000 00 DN50 50,80
L6000 00 DN60 63,50
L6500 00 DN65 76,10
L8000 00 DN80 89,00
L1B00 00 DN100 101,60



ERKEK DİŞLİ DİRSEK BAĞLANTI
  Kodu DN Ölçü(mm)
E1515 0M 15× 15 16. 00 × R½
E2015 0M 20× 15 20. 00 × R½
E2020 0M 20× 20 20. 00 × R¾
E2515 0M 25× 15 25.40 × R½
E2520 0M 25× 20 25.40 × R¾
E2525 0M 25× 25 25.40 × R1
E3225 0M 32× 25 32. 00 × R1
E3232 0M 32× 32 32. 00 × R1%
E4032 0M 40× 32 40. 00 × R1¼
E4040 0M 40× 40 40. 00 × R1¼
E5040 0M 50× 40 50. 80 × R1½
E5050 0M 50× 50 50. 80 × R2



DİŞİ DİŞLİ DİRSEK BAĞLANTI
  Kodu DN Ölçü(mm)
E1515 0F 15× 15 16. 00 × R½
E2015 0F 20× 15 20. 00 × R½
E2020 0F 20× 20 20. 00 × R¾
E2515 0F 25× 15 25.40 × R½
E2520 0F 25× 20 25.40 × R¾
E2525 0F 25× 25 25.40 × R1
E3225 0F 32× 25 32. 00 × R1
E3232 0F 32× 32 32. 00 × R1
E4032 0F 40× 32 40. 00 × R1¼
E4040 0F 40× 40 40. 00 × R1¼
E5040 0F 50× 40 50. 80 × R1½
E5050 0F 50× 50 50. 80 × R2



DİŞİ DİŞLİ DİRSEK BAĞLANTI (KISA)
  Kodu DN Ölçü(mm)
E1515 2F 15× 15 16. 00 × R½
E2015 2F 20× 15 20. 00 × R½
E2020 2F 20× 20 20. 00 × R¾
E2525 2F 25× 25 25.40 × R1



ERKEK DİŞLİ REDÜKSYON TEE
  Kodu DN Ölçü(mm)
T1515 0M 15× 15 16. 00 × R½
T2015 0M 20× 15 20. 00 × R½
T2020 0M 20× 20 20. 00 × R¾
T2515 0M 25× 15 25.40 × R½
T2520 0M 25× 20 25.40 × R¾
T2525 0M 25× 25 25.40 × R1
T3215 0M 32× 15 32. 00 × R½
T3220 0M 32× 20 32. 00 ×  R¾
T3225 0M 32× 25 32. 00× R1
T3232 0M 32× 32 32. 00× R1
T4015 0M 40× 15 40. 00 × R½
T4020 0M 40× 20 40. 00 × R¾
T4025 0M 40× 25 40. 00× R1
T4032 0M 40× 32 40. 00 × R1¼
T4040 0M 40× 40 40. 00 × R1¼
T5015 0M 50× 15 50. 80 × R½
T5020 0M 50× 20 50. 80 × R¾
T5025 0M 50× 25 50. 80× R1
T5032 0M 50× 32 50. 80× R1¼
T5040 0M 50× 40 50. 80 × R1½
T5050 0M 50× 50 50. 80 × R2



DİŞİ DİŞLİ REDÜKSYON TEE
  Kodu DN Ölçü(mm)
T1515 0F 15× 15 16. 00 × R½
T2015 0F 20× 15 20. 00 × R½
T2020 0F 20× 20 20. 00 × R¾
T2515 0F 25× 15 25.40 × R½
T2520 0F 25× 20 25.40 × R¾
T2525 0F 25× 25 25.40 × R1
T3215 0F 32× 15 32. 00 × R½
T3220 0F 32× 20 32. 00 ×  R¾
T3225 0F 32× 25 32. 00× R1
T3232 0F 32× 32 32. 00× R1
T4015 0F 40× 15 40. 00 × R½
T4020 0F 40× 20 40. 00 × R¾
T4025 0F 40× 25 40. 00× R1
T4032 0F 40× 32 40. 00 × R1¼
T4040 0F 40× 40 40. 00 × R1¼
T5015 0F 50× 15 50. 80 × R½
T5020 0F 50× 20 50. 80 × R¾
T5025 0F 50× 25 50. 80× R1
T5032 0F 50× 32 50. 80× R1¼
T5040 0F 50× 40 50. 80 × R1½
T5050 0F 50× 50 50. 80 × R2
T6050 0F 60× 50 63. 50× R2
T6550 0F 65× 50 76. 10× R2
T8050 0F 80× 50 88. 90× R2
T1B50 0F 100× 50 101.60× R2



KELEPÇE TİP REDÜKSYON (YİVLİ)
  Kodu DN Ölçü(mm)
R1E50 00 125× 50 133. 00× 63. 5
R1E65 00 125× 65 133. 00× 76. 10
R1E80 00 125× 80 133. 00× 89. 00
R1E1B 00 125× 100 133. 00× 101.6
R1W50 00 150× 50 159. 00× 65. 50
R1W65 00 150× 65 159. 00× 76. 10
R1W80 00 150× 80 159. 00× 89. 00
R1W1B 00 150× 100 159. 00× 101.6
R2B50 00 200× 50 219. 00× 63. 50
R2B65 00 200× 65 219. 00× 76. 10
R2B80 00 200× 80 219. 00× 89. 00
R2B1B 00 200× 100 219. 00× 101.6
R2W50 00 250× 50 273. 00× 50. 80
R2W65 00 250× 65 273. 00× 76. 10
R2W80 00 250× 80 273. 00× 89. 00
R2W1B 00 250× 100 273. 00× 101.6
R3B50 00 300× 50 325. 00× 50. 60
R3B65 00 300× 65 325. 00× 76. 10
R3B80 00 300× 80 325. 00× 89. 00
R3B1B 00 300× 100 325. 00× 101.6



KELEPÇE TİP REDÜKSYON TEE (YİVLİ)
  Kodu DN Ölçü(mm)
T1E50 0R 125× 50 133. 00× 63. 5
T1E65 0R 125× 65 133. 00× 76. 10
T1E80 0R 125× 80 133. 00× 89. 00
T1E1B 0R 125× 100 133. 00× 101.6
T1W50 0R 150× 50 159. 00× 65. 50
T1W65 0R 150× 65 159. 00× 76. 10
T1W80 0R 150× 80 159. 00× 89. 00
T1W1B 0R 150× 100 159. 00× 101.6
T2B50 0R 200× 50 219. 00× 63. 50
T2B65 0R 200× 65 219. 00× 76. 10
T2B80 0R 200× 80 219. 00× 89. 00
T2B1B 0R 200× 100 219. 00× 101.6
T2W50 0R 250× 50 273. 00× 50. 80
T2W65 0R 250× 65 273. 00× 76. 10
T2W80 0R 250× 80 273. 00× 89. 00
T2W1B 0R 250× 100 273. 00× 101.6
T3B50 0R 300× 50 325. 00× 50. 60
T3B65 0R 300× 65 325. 00× 76. 10
T3B80 0R 300× 80 325. 00× 89. 00
T3B1B 0R 300× 100 325. 00× 101.6



REDÜKSYON (YİVLİ)
  Kodu DN Ölçü(mm)
R1W1E 00 150× 125 159. 00× 133.00
R2B1E 00 200× 125 219. 00× 133.00
R2B1W 00 200× 150 219. 00× 159.00
R2W1E 00 250× 125 273. 00× 133.00
R2W1W 00 250× 150 273. 00× 159.00
R2W2B 00 250× 200 273. 00× 219.00
R3B1E 00 300× 125 325. 00× 133.00
R3B1W 00 300× 150 325. 00× 159.00
R3B2B 00 300× 200 325. 00× 219.00
R3B2W 00 300× 250 325. 00× 273.00



DİRSEK 90 (YİVLİ)
  Kodu DN Ölçü(mm)
E1E00 00 125 133,00
E1W00 00 150 159,00
E2B00 00 200 219,00
E2W00 00 250 273,00
E3B00 00 300 325,00



DİRSEK 45 (YİVLİ)
  Kodu DN Ölçü(mm)
E1E00 45 125 133,00
E1W00 45 150 159,00
E2B00 45 200 219,00
E2W00 45 250 273,00
E3B00 45 300 325,00



TEE (YİVLİ)
  Kodu DN Ölçü(mm)
T1E00 00 125 133,00
T1W00 00 150 159,00
T2B00 00 200 219,00
T2W00 00 250 273,00
T3B00 00 300 325,00



REDÜKSYON TEE (YİVLİ)
  Kodu DN Ölçü(mm)
T1W1E 0R 150× 125 159. 00× 133.00
T2B1E 0R 200× 125 219. 00× 133.00
T2B1W 0R 200× 150 219. 00× 159.00
T2W1E 0R 250× 125 273. 00× 133.00
T2W1W 0R 250× 150 273. 00× 159.00
T2W2B 0R 250× 200 273. 00× 219.00
T3B1E 0R 300× 125 325. 00× 133.00
T3B1W 0R 300× 150 325. 00× 159.00
T3B2B 0R 300× 200 325. 00× 219.00
T3B2W 0R 300× 250 325. 00× 273.00



FLANŞ BAĞLANTI (YİVLİ)
  Kodu DN Ölçü(mm)
L1E00 00 125 133,00
L1W00 00 150 159,00
L2B00 00 200 219,00
L2W00 00 250 273,00
L3B00 00 300 325,00



KELEPÇE (YİVLİ)
  Kodu DN Ölçü(mm)
S1E00 00 125 133,00
S1W00 00 150 159,00
S2B00 00 200 219,00
S2W00 00 250 273,00
S3B00 00 300 325,00



O TİPİ KELEPÇE
  Kodu DN Ölçü(mm)
O1500 00 15 16,00
O2000 00 20 20,00
O2500 00 25 25,40
O3200 00 32 32,00
O4000 00 40 40,00
O5000 00 50 50,80
O6000 00 60 63,50
O6500 00 65 76,10
O8000 00 80 88. 9.
O1B00 00 100 101,60



U TİPİ BAĞLANTI
  Kodu DN Ölçü(mm)
U1500 00 15 16,00
U2000 00 20 20,00
U2500 00 25 25,40
U3200 00 32 32,00
U4000 00 40 40,00
U5000 00 50 50,80
U6000 00 60 63,50
U6500 00 65 76,10
U8000 00 80 88,90
U1B00 00 100 101,60
U1E00 00 125 133,00
U1W00 00 150 159,00
U2B00 00 200 219,00
U2W00 00 250 273,00
U3B00 00 300 325,00



SONLANDIRMA TAPASI (YİVLİ)
  Kodu DN
C1E00 00 DN125
C1W00 00 DN150
C2B00 00 DN200
C2W00 00 DN250
C3B00 00 DN300
